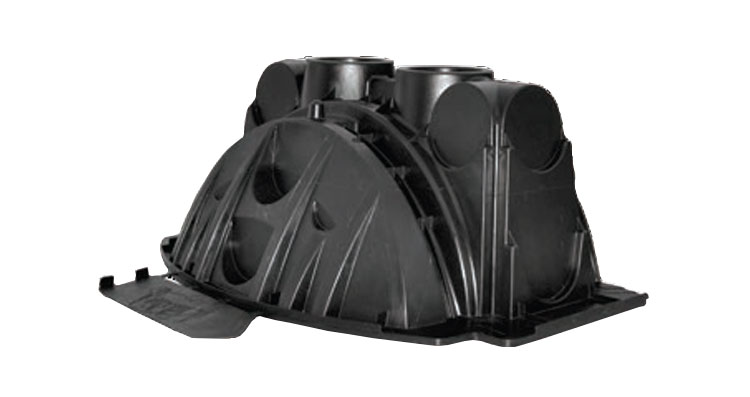

Quick4 Plus All-In-One 12 Endcap
Use with Quick4 Plus Standard and Quick4 Plus High Capacity chambers. Quick4 Plus All-In-One 12 endcap may be used at either end of the chamber row for an inlet/outlet or can be installed mid-trench. The mid-trench connection feature allows construction of chamber rows with a center-feed, as an alternative to inletting at the ends of chamber rows. Center-feed connections allow for easy installaiton of serial distribution systems. Pipe connection options include sides, ends or top.
- Size: 33"W x 20.5"L x 13"H (838 mm x 520 mm x 330 mm)
- Additional Length per Pair of Endcaps: 37" (940 mm)
- Additional Length per when used midline: 11.4" (290 mm)
- Invert Height: 5.3", 8" (134 mm, 203 mm)
- Optional Accessory: All-in-One Periscope
